Thông tin chi tiết sản phẩm:
|
| Tốc độ tối đa: | 450 PC/giờ | Kích thước tối đa: | 390*297mm |
|---|---|---|---|
| Kích thước tối thiểu: | 100*100mm | Điện áp: | 380/220v, 3ph |
| Độ dày khối: | 4-60mm | Điểm nổi bật: | Tốc độ nhanh, điều chỉnh dễ dàng |
| Cách sử dụng: | Sách bìa cứng, máy tính xách tay, máy làm sách ảnh | Ứng dụng: | Báo chí in, nhà xuất bản, nhà sản xuất máy tính xách tay |
| Làm nổi bật: | lay flat photo book machine,auto photo album pressing machine,hard cover book forming press |
||

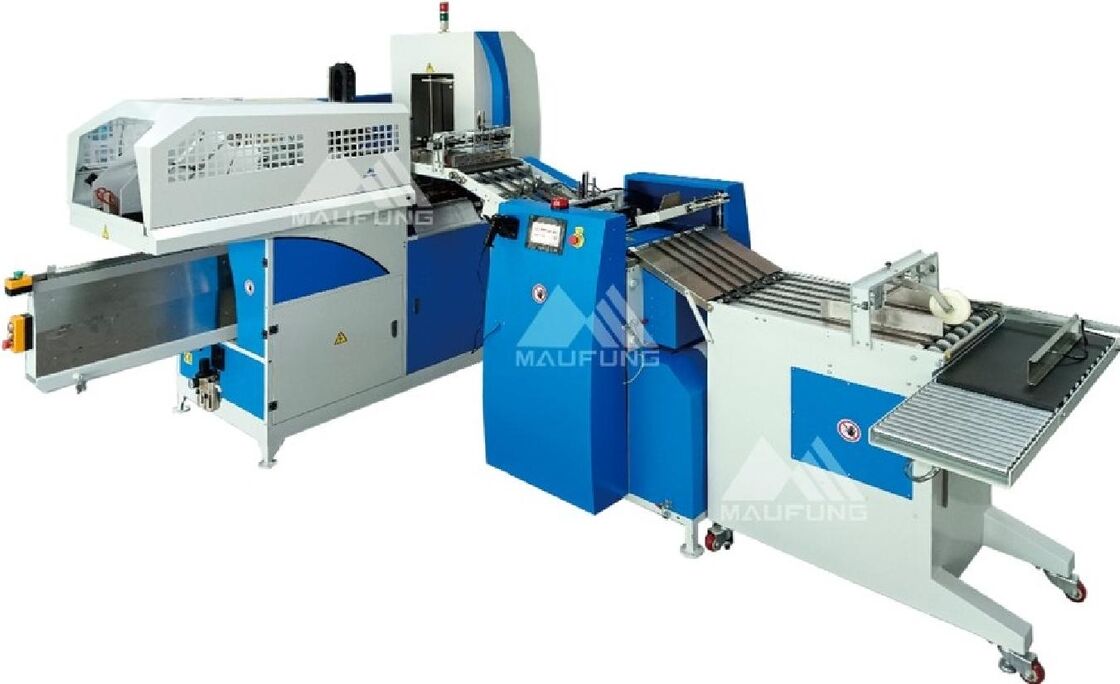

Auto Photo Album Casing In And Forming Pressing Machine, Auto Lay Flat Binding Machine MF-FAC390
Automatic Book Auto Casing in and Forming Pressing Machine MF-FAC390 is widely used for notebooks, photo books and other hard cover books. It is a good choice for print finishing process. We adopt the PLC controlling systems with touch screen operating systems. Less operating technique is required. It will auto push the cases, auto combine the cases with blocks, auto nipping and joint forming, and auto stack the finished books.
| Model | MF-FAC390 |
| Power Supply | 380V, 50HZ |
| Mainframe Power | 7.2kw |
| Block Thickness | 4-60mm |
| Block Size (Max) | 380*270mm |
| Block Size (Min) | 100*100mm |
| Max On-line Speed | 450 pcs/hour |
| Dimension(L*W*H) | 3890*2650*2000mm |
| Weight | 1500KG |
1. Adopt feeder for cases delivery;
2. Add cases pre-creasing function. The cases are nipping before casing in for a better effect.
3. Secial designed casing in alignment device to ensure a precise case in effect;
4. Auto joint forming and nipping the book;
5. Auto delivers the finished products greatly saving the labor.
6. Auto stack the books.
