Name: Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute
Brand: DONGGUAN MAUFUNG MACHINERY CO.,LTD
Price: 11.00 USD
Availability: InStock

Nhà Sản phẩm Máy đeo sổ tay

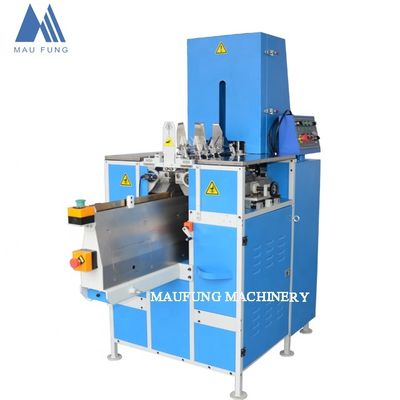

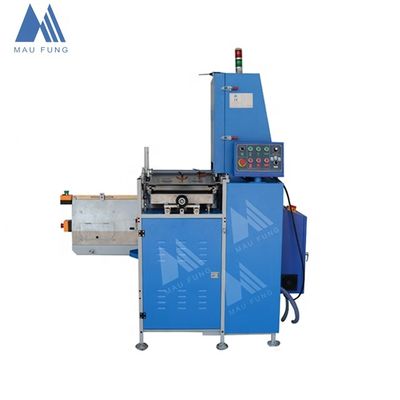

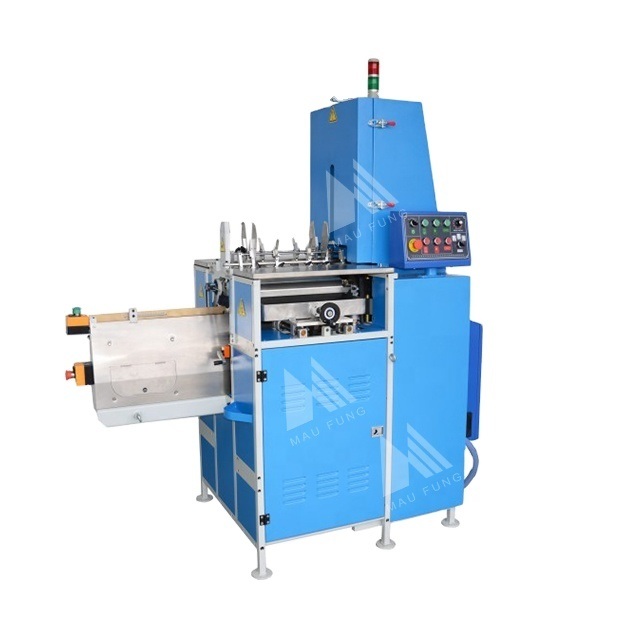

Semi-Automatic 1.5KW 380V Hard Cover Book Casing In Machine with Adjustable Speed 1-17pcs/minute

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Quảng Đông, Trung Quốc
Hàng hiệu:	MAUFUNG

Thanh toán:

Số lượng đặt hàng tối thiểu:	1
Giá bán:	$11,500-12,000

Tiếp xúc

Chi tiết sản phẩm

Lớp tự động:	Bán tự động	Quyền lực:	1,5kw
Điện áp:	380v	Kích thước:	1820×930×2100mm
Cân nặng:	540kg	Tốc độ:	1-17 chiếc / phút
Độ dày giấy:	4-60mm	Kích thước tối đa:	360×270mm
Kích thước tối thiểu:	90×60mm	Nguồn điện:	380V/3PH/50Hz
tốc độ làm việc:	0-17 CÁI/phút	Độ dày khối:	4-60mm
Kích thước máy:	1820×930×2100mm	Trọng lượng máy:	540kg
Phạm vi tốc độ:	0-1000 cuốn sách/giờ
Làm nổi bật:	1.5KW Hard Cover Book Casing In Machine , 380V Notebook Binding Machine , 1-17pcs/minute Book Casing In Machine

Post-Press Equipment Hard Cover Book Casing Machine

Technical Specifications

Model No	MF-SKJ380AS
Power Supply	380V/220V, 50HZ
Mainframe power	1.5kw
Work Speed	0-17PCS/minute (Adjustable Speed)
Block Thickness	4-60mm
Max Size	360x270mm
Min Size	90x60mm
Machine Dimensions(L×W×H)	1820×930×2100mm
Machine Weight	540kg

Main Features

Adjustable Speed: Speed range 0-1000 books/hour (17 books/minute). The parameter is measured as per the common pause time.
Adjustable Pause Time: The pause time when the machine reaches the highest point is controlled by an external time relay, allowing user adjustment as needed.
Inch Operation: Includes inch-in switch for precise alignment during machine debugging.
Automatic Power Off: Machine motor stops after 10 minutes of inactivity for operator safety and extended machine lifespan.
Premium Variable-Frequency Drive: Features high-quality imported variable-frequency drive for reliable performance.
Simplified Electrical Installation: Variable-frequency drive controller ensures correct machine rotation regardless of three-phase electric phase sequence.

Applications

Designed for medium and small factories, this semi-automatic casing machine addresses the time-consuming nature of hardcover book production. It improves efficiency by:

Reducing labor requirements
Eliminating unbalanced gluing issues
Increasing gluing speed (both sides simultaneously)
Providing quick, precise alignment of hard cases with book blocks

Available in three versions: standard for hard cover, updated for soft cover, and custom for round back books.

Certifications

Manufacturer Information

Dongguan Maufung Machinery Co., Ltd., located in Wanjiang district, Dongguan city, specializes in manufacturing case-makers for hardcover books, post-printing processes, packaging, automatic gift box, and pasting machines. Our product line includes:

Photo Book Lay Flat Machine
Book Block Head Band Machine
Semi Auto Case Maker
Hard Cover Book Pressing & Creasing Machine
Fully Automatic Punching Machine

Our MAUFUNG brand equipment is renowned in domestic and international markets, exported to over 100 countries including the United States, the Netherlands, Australia, and throughout Southeast Asia, Russia, the Middle East, and Africa. We maintain strict quality control and offer comprehensive after-sales services including installation, adjustment, and maintenance.
