Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks

Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks

Hình ảnh lớn :  Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks

Thông tin chi tiết sản phẩm:
Nguồn gốc: Quảng Đông, Trung Quốc
Hàng hiệu: MAUFUNG
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Giá bán: $13,000-14,000
Tiếp xúc

Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks

Sự miêu tả
Quyền lực: 5,2kw Điện áp: 380V/220V
Kích thước máy: 1780×1620×1400mm Trọng lượng máy: 550kg (tây bắc), 700kg (gw)
tốc độ làm việc: 1-3 CÁI / phút độ dày bìa: 1-4mm
Chiều rộng cột sống của trường hợp cứng: 9mm (Tối thiểu) Kích thước hộp sách mở: 780x430mm (Tối đa), 140x140mm (Tối thiểu)
Độ dày giấy: 80-200g Kích thước bao bì: 2100*1300*1830mm
Tốc độ ràng buộc: 2-3pcs/min Kích thước giấy tối đa: 780*430mm
Kích thước giấy tối thiểu: 125*125mm Tốc độ dán: 20-40 chiếc (MF-GM500)
Chiều rộng lớp phủ tối đa: 500mm (MF-GM500)
Làm nổi bật:

5.2KW Power Book Case Making Machine

,

1-4mm Paperboard Thickness Hard Cover Case Maker

,

2-3pcs/min Binding Speed Notebook Binding Machine

MF-SCM500A Semi Auto Case Maker

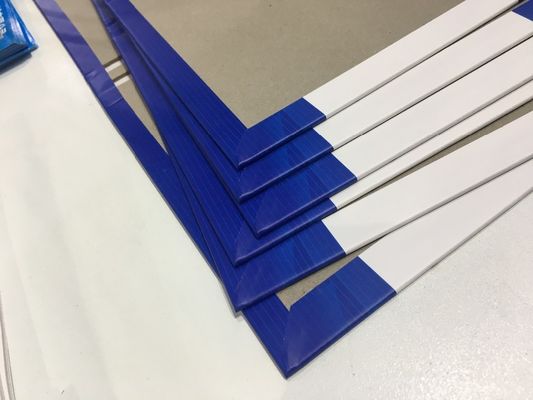

This machine is primarily used for covering and folding various notebooks, photo books (photo albums), folders, certificates, and hardcover books. The process is completed efficiently on both sides simultaneously by a single operator, making it ideal for hard cover post-press binding applications.
Specifications

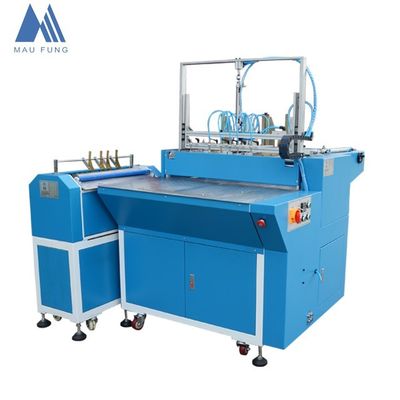

Model MF-SCM500A
Power Supply 380V/220V, 50HZ
Mainframe Power 5.2kw
Work Speed 1-3PCS/minute
Paperboard Thickness 1-4mm
Hard Case Spine Width (Min) 9mm
Open Book Case Size (Max) 780x430mm
Open Book Case Size (Min) 140x140mm
Paper Thickness 80-200g
Machine Dimensions (L×W×H) 1780×1620×1400mm
Packaging Size (LxWxH) 2100*1300*1830mm
Machine Weight N.W 550KG; G.W.700KG
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 0

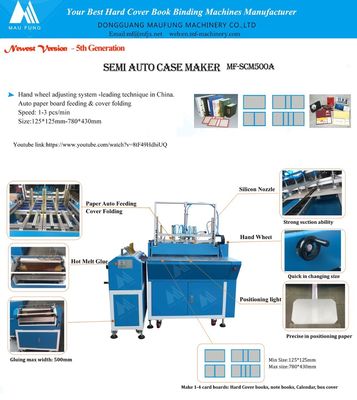

Main Features
  • Automatic paper feeding system with pneumatic auto foot switch
  • PLC operating system for precise control
  • Compatible with hot glue (animal glue/Jelly glue)
  • Quick product changeover with fast adjustment speed
  • Automatic cardboard thickness adjustment
  • Size adjustment via rotating handle wheel
  • Light tube inside working table for accurate positioning
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 1
Optional Hot Melt Gluing Machines

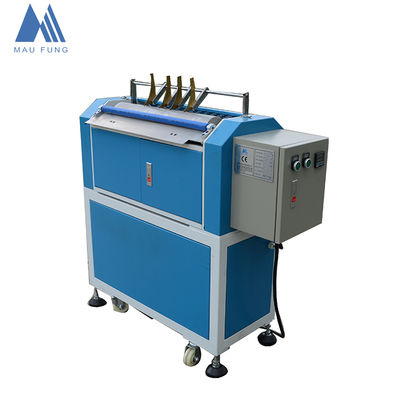

MF-GM500 Hot Melt Gluing Machine
Max Coating Width: 500mm
Normal Gluing Thickness: 80-200g
Gluing Speed: 20-40pcs
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 2
MF-720 Hot Melt Gluing Machine
Max Coating Width: 720mm
Normal Gluing Thickness: 0.15-0.35mm
Gluing Speed: 5-25m/minute
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 3
Related Equipment
MF-FAC390A Auto Book Casing In & Joint Forming Line
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 4
MF-SEM450 Semi-Automatic Elastic Band Inserting Machine
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 5
MF-FAC390 Fully Auto Case In Machine
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 6
MF-PCM380EV Pressing & Creasing Machine (Enhanced version)
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 7
MF-SKJ380AS Hard Cover Book Case In Machine
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 8
Certifications
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 9
We continuously upgrade product quality and after-sales service while focusing on self-development. Adhering to "People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy" and "Rooting in Quality, Developing via Brand" strategy, we have obtained CE certification, multiple patents, and recognition as a National "High Tech Enterprise".
Semi-Automatic Book Case Making Machine with 5.2KW Power and 1-4mm Paperboard Thickness for Notebooks 10
Frequently Asked Questions
1. Is your company a factory or trading company?
Our company is a factory.
2. What about the samples?
You can visit our factory if you'd like.
3. How to install the machine?
After-sales Service Provided:
- Online support
- Free spare parts
- Field installation, commissioning and training
- Field maintenance and repair service
- Video technical support
4. What if the machine can't work?
We are available 24 hours online.
5. How long is the warranty period?
One year.
6. What certificates do your machines have?
Our machines all have CE certificates and Certificates of origin.
