Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Chứng nhận
Trung Quốc DONGGUAN MAUFUNG MACHINERY CO.,LTD Chứng chỉ
Trung Quốc DONGGUAN MAUFUNG MACHINERY CO.,LTD Chứng chỉ
Tôi trò chuyện trực tuyến bây giờ

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Hình ảnh lớn :  Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Thông tin chi tiết sản phẩm:
Nguồn gốc: Quảng Đông, Trung Quốc
Hàng hiệu: MAUFUNG
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Giá bán: $8,000-9,000

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Sự miêu tả
Quyền lực: 1,5kw Điện áp: 220V/50Hz
Kích thước: 960*870*1390mm Cân nặng: 220kg
Cắt độ dày: 100mm Tốc độ làm việc: 23 lần/phút
Kích thước giấy tối thiểu: 105*50mm Kích thước giấy tối đa: 490*450mm
Kích thước bàn làm việc: 860*380mm Áp suất không khí: 6-8bar
Khuôn góc tròn: 1/8'',3/16'',1/4'',5/16'',3/8'',7/16'',1/2'' Lớp tự động: Tự động
Kích thước máy: 960*870*1390mm Trọng lượng tịnh: 220kg
Mô hình không: MF-DCM470
Làm nổi bật:

100mm Cutting Thickness Round Corner Cutting Machine

,

23 times/min Working Speed Book Cutting Machine

,

490*450mm Max Paper Size Notebook Cutting Machine

Pneumatic Double Head Angle Cutting Machine Book Round Corner Cutting Machine Notebook Cutting Machine
Product Specifications
Model No MF-DCM470
Power Supply 220V /50HZ
Max Paper size 490*450mm
Min Paper size 105*50mm
Max cutting thickness 100mm
Round corner mold 1/8'',3/16'',1/4'',5/16'',3/8'',7/16'', 1/2'',9/16'',5/8'',3/4'',7/8'', 1'
Working Table size 860*380mm
Air pressure 6-8bar
Machine Dimensions (L*W*H) 960*870*1390mm
Working Speed 23 times/min
Weight 220kg
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 0 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 1

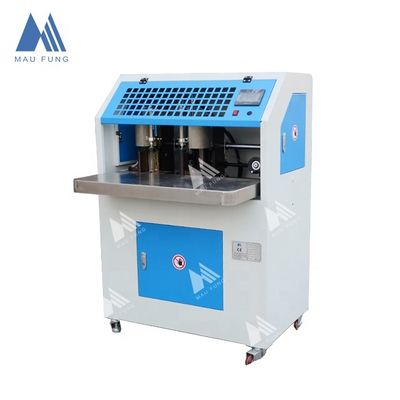

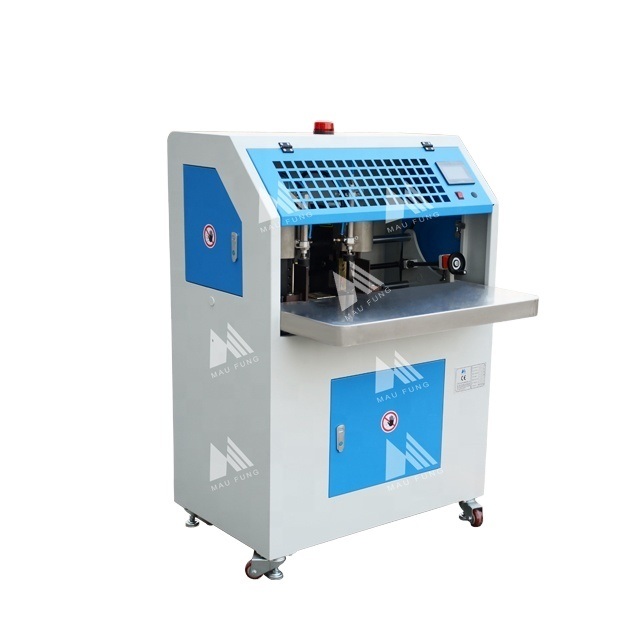

Pneumatic double head with max cutting 100mm thickness.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 2 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 3
Touch screen for convenient operation.
Applications
MF-DCM470 Hydraulic Double-head Angle Cutting Machine applies to books, playing cards, invitations, trademarks, business cards and other printing and cutting round, triangle shape. This machine uses hydraulic system. It can cut two sides of angles one time with simple operation and high efficiency.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 4 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 5 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 6
Certifications
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 7
Company Information
We Dongguan Maufung Machinery Co., Ltd is a leading manufacturer in the hard cover books binding machines and Rigid Box packaging machines. Our company mainly produces Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Hard Cover Book Pressing & Creasing Machine, Book Block Rounding Machine, fully automatic punching machine, hydraulic impacting spine machine, wire O binding machines, rigid box forming machines, etc. We possess our independent well-known brands MAUFUNG.

We take the quality and after-sale service as the core of our business which makes our brand good fame in the world. And we have a very professional R&D team with over 20 years experience in this line. We care about the market trends, focus on the machine quality and performance, and attach great importance to customers demand. Products sell well in China and have been exported to more than 100 countries.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 8
Exhibition Participation
We took part in South Print Exhibition each year, Print China Exhibition, China Print Exhibitiion and Shanghai All in Print Exhibition, and also 2019 Egypt Techono print, 2016 Drupa exhibition, 2015 Dubai Gulf Print & Pack etc. We will take part in 2020 Drupa Exhibition. Looking Forward to meeting you in our booth 6/D95.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 9
